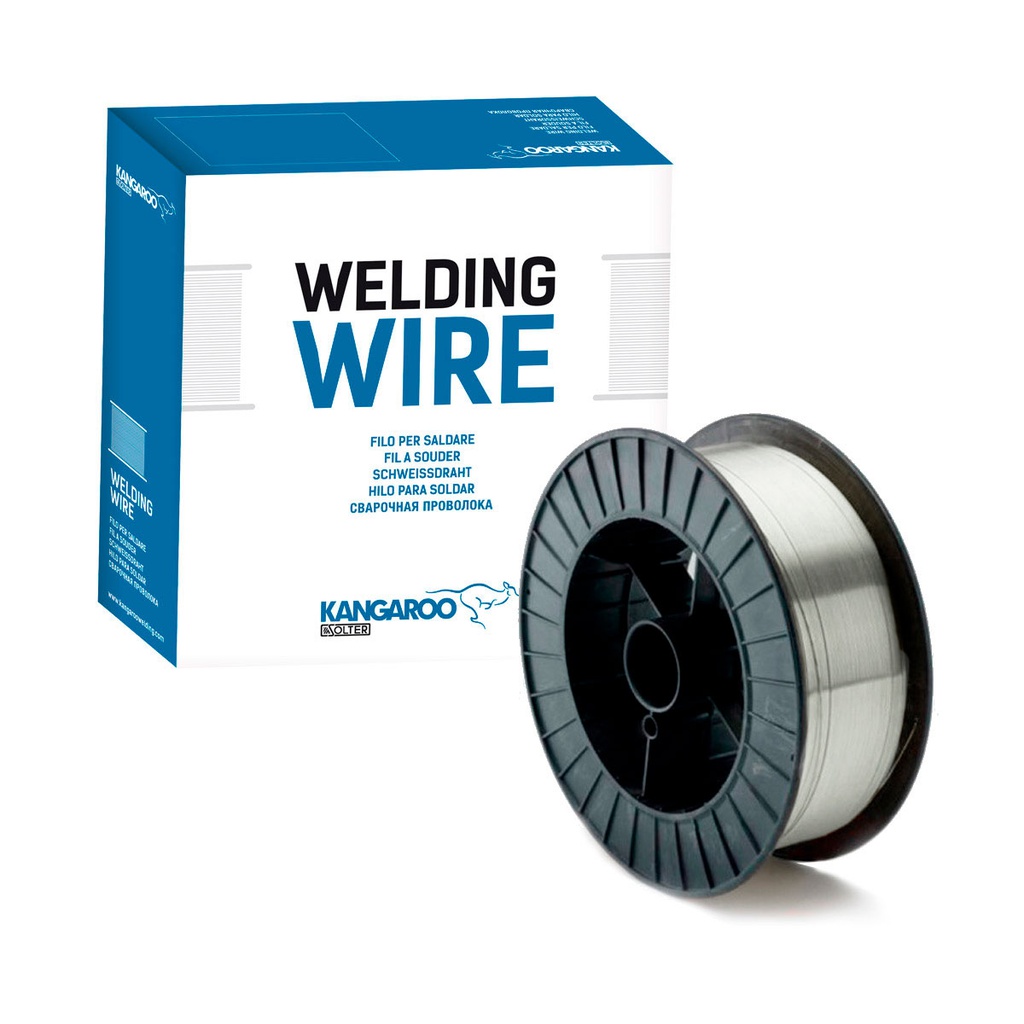

Hilo MIG para soldadura de aceros inoxidables austeníticos tipo 304 y 304 L. Bajo contenido en carbono. Excelente resistencia a la corrosión.
|
CLASIFICACIÓN
|
|
|---|---|
| AWS | A5.9: ER 308LSi |
| EN ISO | 14343-A: G 19 9 L Si |
|
COMPOSICIÓN QUÍMICA (%)
|
|
| C | 0.030 Max. |
| Si | 0.65-1.00 |
| Mn | 1.00-2.50 |
| P | 0.030 Max. |
| S | 0.030 Max. |
| Mo | 0.75 Max. |
| Cr | 19.5-22.0 |
| Ni | 9.0-11.0 |
| Cu | 0.75 Max. |
|
-
|
|
| Aplicación estructuras | Application in metallic structures or in composite metal and concrete structures. |
|
PROPIEDADES MECÁNICAS
|
|
| Límite Elástico (N/mm2) | >320 |
| Alargamiento 5d (%) | 25 |
| Carga Rotura (N/mm2) | >510 |
|
PARÁMETROS DE SOLDADURA
|
|
| Diámetro | 0.8 |
| Intensidad de corriente (A) | 40-120 |
| Voltaje de Arco (V) | 16-22 |
| Tipo de corriente | DC + |
|
POSICIONES DE SOLDADURA
|
|
| Posiciones |
|
|
CERTIFICACIONES
|
|
| Certificados |
|
|
Uncategorized
|
|
| Marca | KANGAROO |
