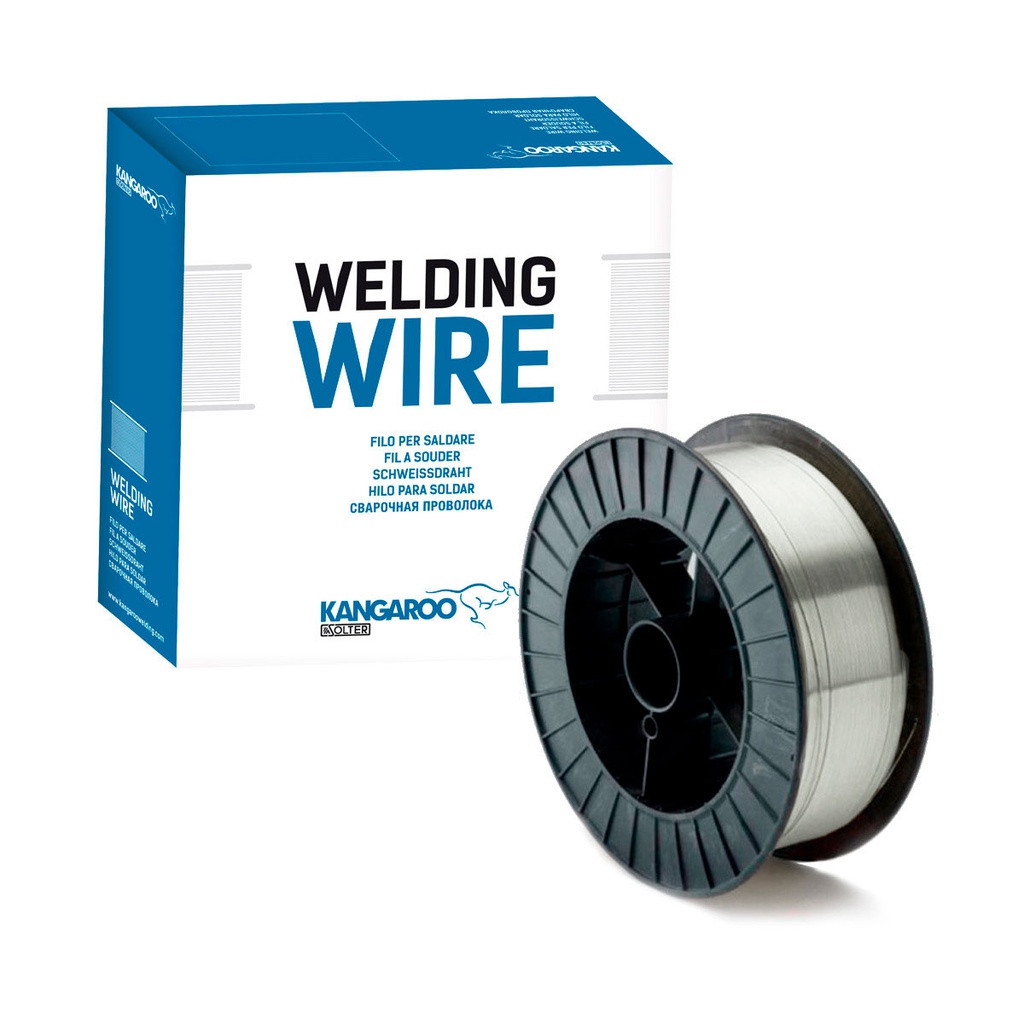

Hilo MIG para soldadura de aceros inoxidables austeníticos tipo 316 y 316 L. Bajo contenido en carbono. Excelente resistencia a la corrosión.
|
CLASIFICACIÓN
|
|
|---|---|
| AWS | A5.9: ER 316LSi |
| EN ISO | 14343-A: G 19 12 3 L Si |
|
COMPOSICIÓN QUÍMICA (%)
|
|
| C | 0.030 Max. |
| Si | 0.65-1.00 |
| Mn | 1.00-2.50 |
| P | 0.030 Max. |
| S | 0.030 Max. |
| Mo | 2.00-3.00 |
| Cr | 18.0-20.0 |
| Ni | 11.0-14.0 |
| Cu | 0.75 Max. |
|
-
|
|
| Aplicación estructuras | Application in metallic structures or in composite metal and concrete structures. |
|
PROPIEDADES MECÁNICAS
|
|
| Límite Elástico (N/mm2) | >320 |
| Alargamiento 5d (%) | 25 |
| Carga Rotura (N/mm2) | >510 |
|
PARÁMETROS DE SOLDADURA
|
|
| Diámetro | 0.8 |
| Intensidad de corriente (A) | 40-120 |
| Voltaje de Arco (V) | 16-22 |
| Gas protector | Ar+CO₂ (M12) ; Ar+O₂ (M13) |
| Tipo de corriente | DC + |
|
POSICIONES DE SOLDADURA
|
|
| Posiciones |
|
|
CERTIFICACIONES
|
|
| Certificados |
|
|
Uncategorized
|
|
| ITEM MARK | ER316LSi |
| Marca | KANGAROO |
