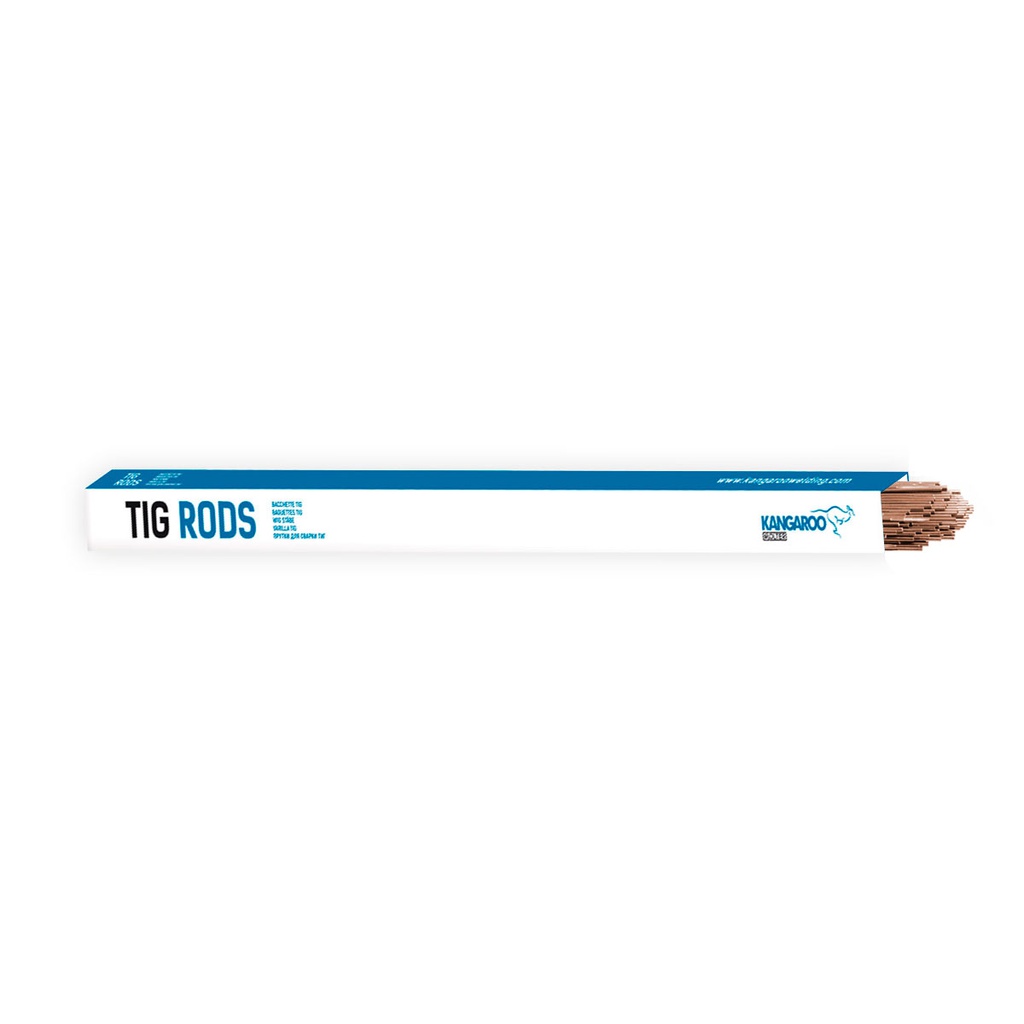

Varilla TIG cobreada para la soldadura de aceros al carbono. En su composición tiene elevados contenidos de elementos desoxidantes con Mn y Si.
|
CLASIFICACIÓN
|
|
|---|---|
| AWS | A5.18: ER 70S-6 |
| EN ISO | 636-A: W 42 4 3Si1 |
|
COMPOSICIÓN QUÍMICA (%)
|
|
| C | 0.030 Max. |
| Si | 0.65-1.00 |
| Mn | 1.00-2.50 |
| P | 0.030 Max. |
| S | 0.030 Max. |
|
-
|
|
| Aplicación estructuras | Application in metallic structures or in composite metal and concrete structures. |
|
PROPIEDADES MECÁNICAS
|
|
| Límite Elástico (N/mm2) | 420 Min. |
| Alargamiento 5d (%) | 22 Min. |
| Carga Rotura (N/mm2) | 580 Min. |
| Resiliencia Charpy V -40 ºC (J) | 60 J |
| Resiliencia Charpy V -20 ºC (J) | 90 J |
|
PARÁMETROS DE SOLDADURA
|
|
| Diámetro | 3.2 |
| Intensidad de corriente (A) | 150-240 |
| Gas protector | Ar+15-20% CO₂ (M21) |
| Tipo de corriente | DC - |
|
POSICIONES DE SOLDADURA
|
|
| Posiciones |
|
|
CERTIFICACIONES
|
|
| Certificados |
|
|
Uncategorized
|
|
| ITEM MARK | ER70 S 6 |
| Marca | KANGAROO |
