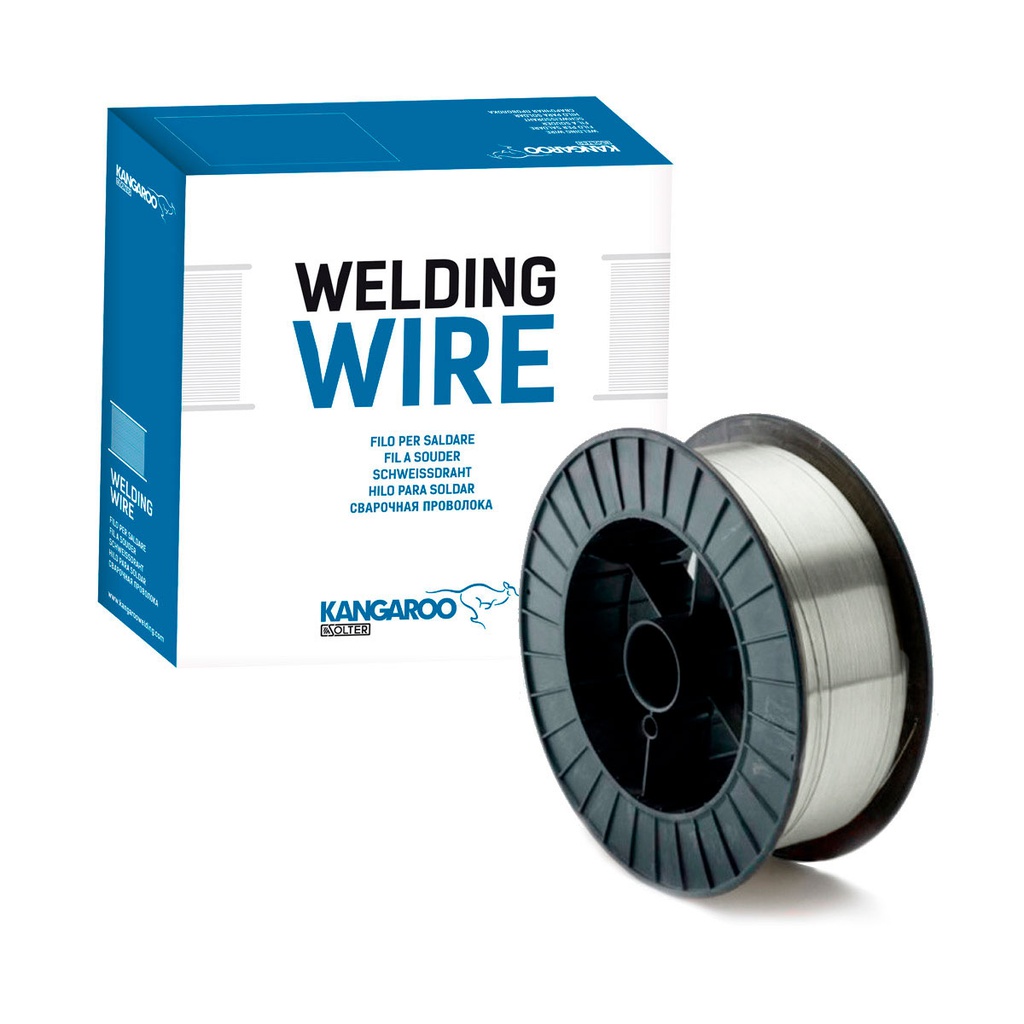

Hilo MIG para soldadura de aceros inoxidables austeníticos tipo 304 y 304 L. Bajo contenido en carbono. Excelente resistencia a la corrosión.
CLASIFICACIÓN
|
|
---|---|
AWS | A5.9: ER 308LSi |
EN ISO | 14343-A: G 19 9 L Si |
COMPOSICIÓN QUÍMICA (%)
|
|
C | 0.030 Max. |
Si | 0.65-1.00 |
Mn | 1.00-2.50 |
P | 0.030 Max. |
S | 0.030 Max. |
Mo | 0.75 Max. |
Cr | 19.5-22.0 |
Ni | 9,0 - 11,0 |
Cu | 0.75 Max. |
PROPIEDADES MECÁNICAS
|
|
Límite Elástico (N/mm2) | 400 Min. |
Alargamiento 5d (%) | 35 Min. |
Carga Rotura (N/mm2) | 600 Min. |
PARÁMETROS DE SOLDADURA
|
|
Diámetro | 1.0 |
Intensidad de corriente (A) | 90-150 |
Voltaje de Arco (V) | 24-26 |
Tipo de corriente | DC +/- |
POSICIONES DE SOLDADURA
|
|
Posiciones |
|
Uncategorized
|
|
ITEM MARK | ER308LSi |
